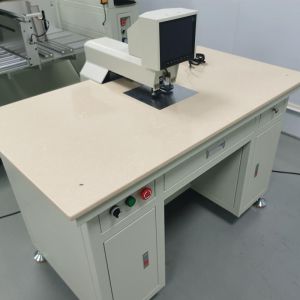

Automtic CCD Target Precision Punch Machine For Plastics Sheet/Board

Ask Lasest Price
Brand Name :	SILITRON
Model Number :	SLT15
Certification :	CE
Payment Terms :	T/T
Supply Ability :	30 per month

Add to Cart

Product Details
Company Profile

Automtic CCD Target Precision Punch Machine For Plastics Sheet/Board

Applicable Industries

This guide hole punching machine it's widely used for PET, PC, PVC, IMI/IMD, polycarbonate, polyster film, plastic sheet, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, flex printed circuits, medical labels, graphic overlays, and other materials.

Punching Samples

Machine Features

High precision automatic target search with material quick locking system.
High Precision Servo Motor Control System.
Punch Accuracy : +/- 0.015mm.
Extremely fast punching action.
Super Powerful Punching Ability, Ideal for thick plastic materials or even thin sheet metal materials(SLTZ15).
Acrylic holding plate for easy material positioning
Large marble tabletop, very strong for good scratch resistance.
Special Lighting system for easy target recognition
Special durable punch head mechanism which allows quick tool-set changing and adjustment free.
User-friendly control interface with Color TFT LCD monitor
Pneumatic system for maximum reliability and minimum maintenance

Technical Parameter

Model	SLT15
Dimension	L1250 x W780 x H1150mm
Weight	200KG
Table size	L1250 x W770mm
Punching force	2500N
Air pressure	0.4~0.8Mpa
Voltage	AC 220V-240V 50HZ
Power	0.4kW
Precision	±0.015mm
Light source	white and colors

Workable Marks

Equipment Main Components

Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
